LIMITED TIME OFFER
Purchase the CMX44 and get the CMX84 Matrix Switcher Driver absolutely FREE.
Perfect for home or smaller Sports Bar!

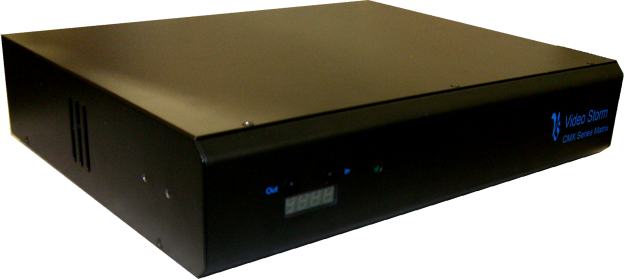

Ever wished you could view full quality HDTV throughout your house without a closet full of equipment in every room? CMX44 integrates everything you need to distribute all your HDTV video and audio sources to all the displays throughout your home.
CMX44 is the most feature rich high performance matrix switch on the the market. We support more signal types than the competition, plus we offer unique features such as analog audio volume control and easy integration with external HDMI matrix switches.
The entire CMX product line offers unmatched upgrade capability.
Accepts any remote control
or RS-232!
Flexible control options
| |
Flexible Control Options |
| |
CMX44 can be controlled by several methods, you can choose the one the best fits your home theater control scheme. |
 |
Manual
control using the front
panel buttons |
|
IR control using a programmable remote. You can download the Pronto codes needed here. The raw Hex format is here. |
|
IR
control using your standard
remote. Zerokey can
learn any remote keys
to control CMX88. |
|
RS-232
control using Cinemar's
custom designed plugin. |
| |
|
| |
Each output is individually switch-able. You can configure CMX44 in one of 2 control modes: |
| |
- Basic mode: Component video, composite video, analog audio, and digital audio(coax/tos) switch together.
- Advanced mode: Component video, composite video, analog audio, and digital audio(coax/tos) all are switched independently
|
Video Distribution
CMX44 is the ideal amplifier for driving long video cables in your home. Many vendors claim their products can do this, but very few can accomplish this without distortion of the video. The most important amplifier design factors in driving long cables are source impedance matching, output connector quality, amplifier bandwidth, and amplifier current drive and slew rate. Our amplifier uses the best components for all these, resulting in the best signal distribution you can get.
ZeroKey Technology
The remote control interface can use ZeroKey infrared code cloning to map any remote control key to each of the inputs & outputs. ZeroKey technology is compatible with virtually all remote controls, and does not interfere with the normal operation of the remote. Please see our quick start guide for a description of how to program for an IR remote using ZeroKey.
ZeroKey programming is stored in flash memory, and you will not need to reprogram even if you lose power. If you buy a new remote in the future, don't worry, the CMX44 can be reprogrammed as much as you like.
HDMI expansion capability
The CMX44 has the ability to seamlessly add HDMI matrix switching capability. Simply purchase one of our HMX series rack mountable HDMI matrix switches and connect the RS-232 port from the HMX switch to the expansion port on the CMX44. You will be able to switch the HDMI matrix through the same control interface you use to switch the CMX44. No need for a separate remote or RS-232 controller.
Upgradeable firmware
CMX44 supports firmware updates over the RS-232 port. Future updates will add the capability to control all our new products over the expansion port.
| |
|
| |

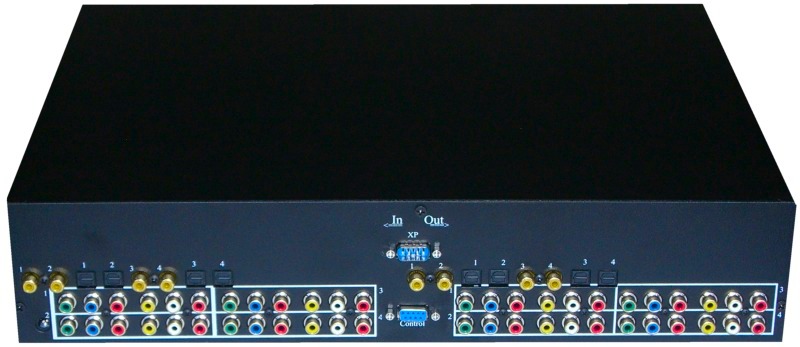

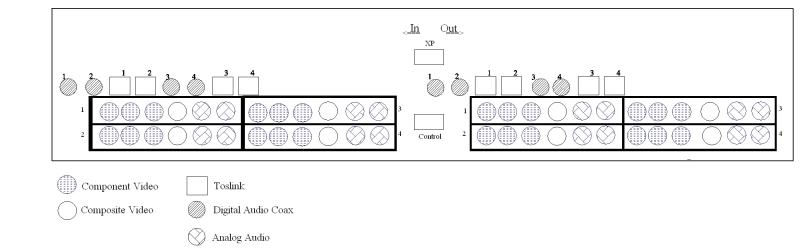

Specifications |
|
16 High bandwidth analog inputs (can be used for component video and composite video)
75Ohm terminated at all frequencies
Gold plated matched low impedance RCA jacks
1Vpp nominal input swing (Ypbpr) or 1.3Vpp (Cvbs) 4Vpp maximum (DC invariant)
DC rejection via capacitive coupling
Crosstalk < -80 dB |
|
16 High bandwidth analog outputs (can be used for component video and composite video)
Source impedance 75 Ohms
Gold plated matched low impedance RCA jacks
All output sets individually controllable/switchable
High performance amplifier capable of driving over 300ft of coax cable per output
2V/V gain to properly drive output load termination (zero effective gain at display)
-3dB bandwidth > 100 Mhz |
|
8 Analog audio inputs
10KOhm terminated at all frequencies
Gold plated matched low impedance RCA jacks
2.6Vpp nominal input swing 4Vpp maximum (DC invariant)
DC rejection via capacitive coupling
256 step programmable input volume equalization
Crosstalk < -110 dB |
|
8 Analog audio outputs
Source impedance 75 Ohms
Gold plated matched low impedance RCA jacks
All output sets individually controllable/switchable
High performance Burr-Brown amplifier capable of driving over 300ft of coax cable per output
256 step programmable volume control
THD+N < 0.0004% |
|
4 Optical Digital audio inputs + 4 Optical Digital audio outputs
Optical digital audio inputs have built in shutters, no plugs needed
Selectable transcoding from coax digital audio
All outputs individually controllable/switchable |
|
4 Coax Digital audio inputs + 4 Coax Digital audio outputs
Gold plated matched low impedance RCA jacks
AC coupled to protect all connected equipment
Capable of driving over 300ft of coax cables
Selectable transcoding from optical digital audio
All outputs individually controllable/switchable |
|
IR receiver (front) |
|
RS-232 control input (DB9 female) & RS-232 expansion output (DB9 male) |
|
Internal design
Flash programmable micro controller enables ZeroKey remote technology
Ultra wide bandwidth integrated buffered t-switch matrix prevents crosstalk or signal distortion
Independent professional quality video amplifiers for best performance
High reliability capacitors and self resetting fuse protection for long life
Designed and manufactured in the USA |
|
Housing
Black steel rack mountable
housing 17" x 13"
x 3.5" (2 RU) |
| |
|
